If you've ever lifted a front tire off the ground on a trail or felt your rear wheel spin freely while the van goes nowhere, you've met your open differential. It's one of the most common off-road frustrations Sprinter owners run into, and one that most people don't realize has a straightforward fix.

At Adrenaline HQ, we install ARB Air Lockers in Mercedes Sprinters regularly. Tim Hines recently broke down exactly how the system works, what it does for your van, and whether it's worth the investment. Here's everything you need to know.

The Problem with Your Stock Differential

Your Sprinter comes from the factory with an open differential. That's by design: it lets each wheel spin at a different speed when you're cornering on pavement, which is exactly what you want on the street.

Off-road, it becomes a liability.

The moment one wheel loses traction, the Mercedes electronic system kicks in and applies the brakes to that spinning wheel, attempting to transfer power to the other side. In a mild situation, it works. In deep mud, snow, a loose rocky climb, or any truly low-traction scenario, the van cycles through both wheels so fast that you end up with your foot to the floor and zero drive to the rear axle.

The electronics are fighting you, not helping you.

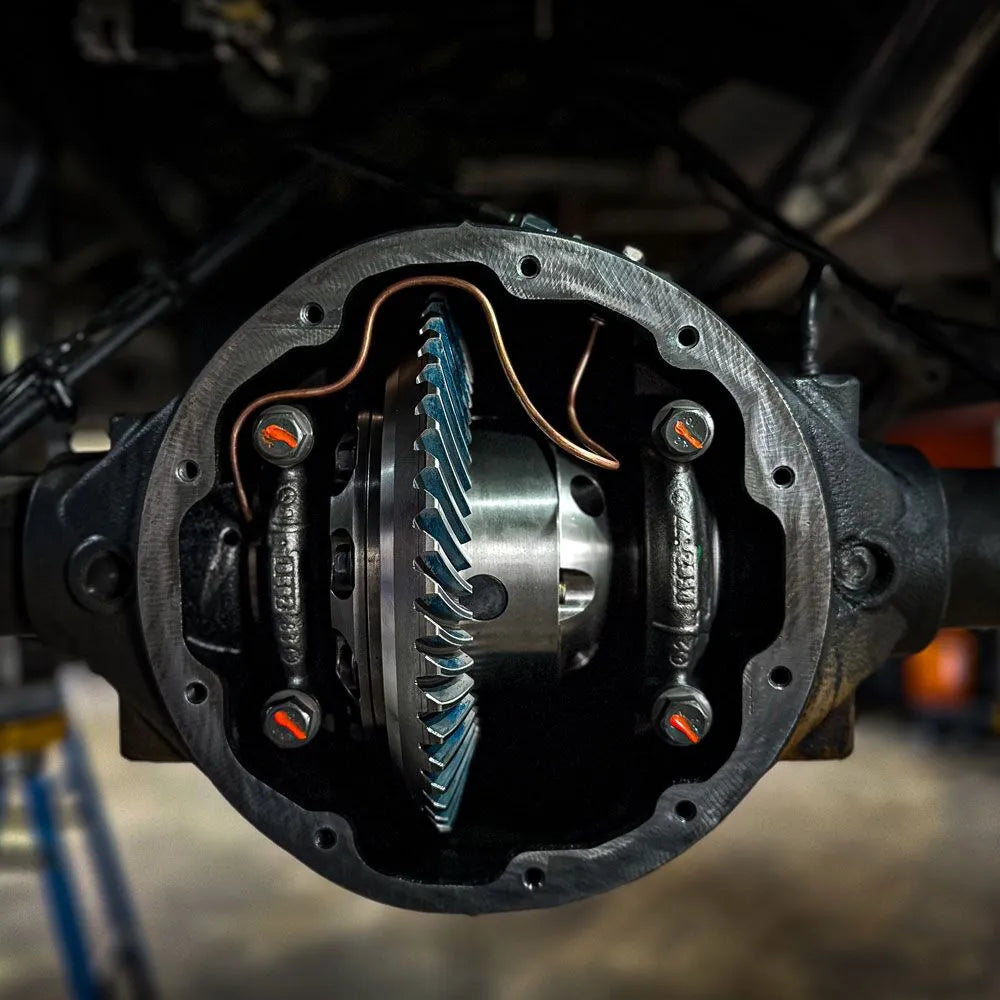

What an ARB Air Locker Actually Does

An ARB Air Locker is an air-driven locking differential. When engaged, it locks both rear axles together so they spin at the exact same rate. The result: double the traction and, critically, the Sprinter's electronics stop trying to intervene.

That second part is what most people miss. It's not just about extra grip. It's about bypassing the electronic system that keeps cutting power before the tires can do their job. With the locker engaged, you can maintain throttle, build momentum, and get through obstacles that would stop a stock van cold.

The whole thing runs off an onboard air compressor. A single button press on your dash engages the locker in about a tenth of a second. When you're back on hard surfaces, you disengage it and the van drives exactly like stock.

Does It Work on AWD and 4WD Sprinters?

Yes, and it may matter even more on all-wheel drive models.

AWD vans are not immune to the electronic braking problem. Picture pulling out of a parking spot on an icy incline. Even with AWD engaged, the moment the wheels start spinning, the van starts cycling the brakes between axles. With an air locker, you push the button, both rear axles lock, and you can spin your way out and build momentum. The same logic applies anywhere the electronics would otherwise fight you.

On 2WD and older 4WD vans, AHQ can also change the rear gear ratio to match your specific use case. Tim's show van runs a tall gear ratio for heavy towing, which means more low-end torque for getting up grades. AWD vans require matching the front differential, so those stay at the factory 4.72 ratio.

Why This Is Not a DIY Install

This is not something to attempt in your driveway. The ARB Air Locker installation requires specialized equipment and precision tolerances that go beyond what most shops, let alone home mechanics, have access to.

To do it right, the installation involves setting:

• Pinion depth
• Pinion preload and drag
• Carrier drag and backlash
• Bearing float and tension
• Gear engagement pattern

Every measurement has to be dialed to factory spec or tighter. Tim's team also mills the bearing cap to fit the air collar, which requires a proper milling machine.

On AWD vans, there's an additional programming requirement. The van's computer needs to be updated to recognize the gear setup. Skip this and the van may not function correctly after the install.

In short: go to a shop with serious Sprinter experience. Not a general drivetrain shop. Someone who has done this specific install on this specific platform.

Maintenance After the Install

The break-in process matters. After installation, the gear set goes through three full heat cycles: heated up to operating temperature and cooled back to room temp three times, before the van goes back to the customer.

From there:

• Initial oil change at 500-1,000 miles. This keeps the gear set and air locker in warranty.
• Regular intervals after that. Back to your standard Mercedes differential service schedule.
• Tim's personal recommendation: Check or change gear oil every 20,000 miles. It's a small investment compared to rebuilding a differential due to contaminated oil.

One common failure mode to watch for: water in the differential oil. A failed seal or a torn breather tube can let moisture in, and contaminated gear oil will destroy a differential long before its time. Catching it early is cheap. Missing it is not.

What If the Air System Fails?

The short answer: you just have a stock van again.

If the air system goes down while you're driving, the locker disengages and the differential falls back to open (stock) form. You don't lose the ability to drive. You're not stranded on a trail because you lose your air. It's just back to a stock van.

What Does It Cost?

Starting at $5,800 installed: full air locker, ring and pinion setup, labor, break-in, and programming where required. The final number depends on your van configuration, gear ratio selection, and a few other factors specific to your build.

It's not a small number. But for a van you're taking into serious terrain, it's the single biggest capability upgrade you can make.
