BMW Bypass Oil Filtration Kit

BMW Bypass Oil Filtration Kit

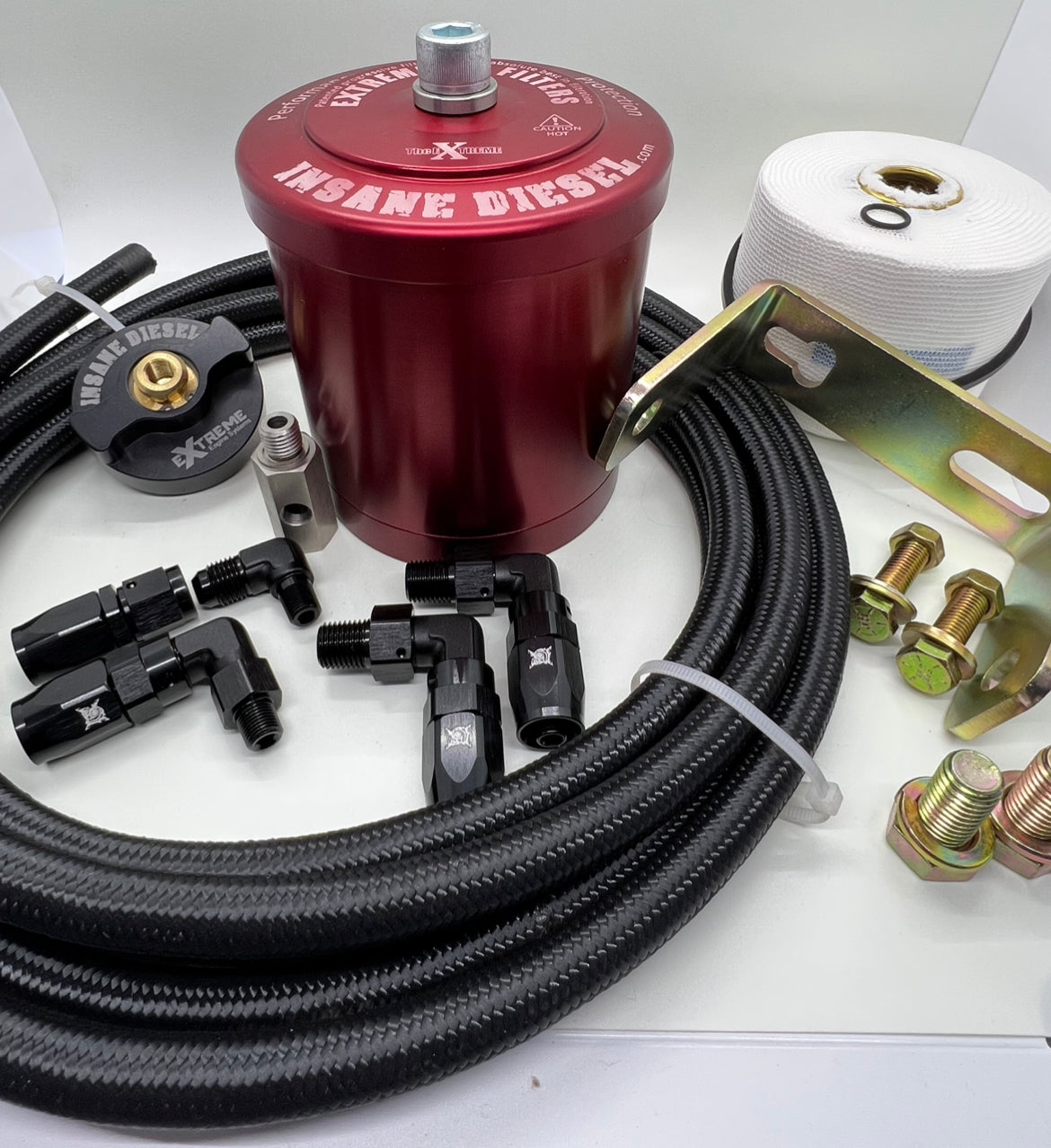

Parts Included In This Kit

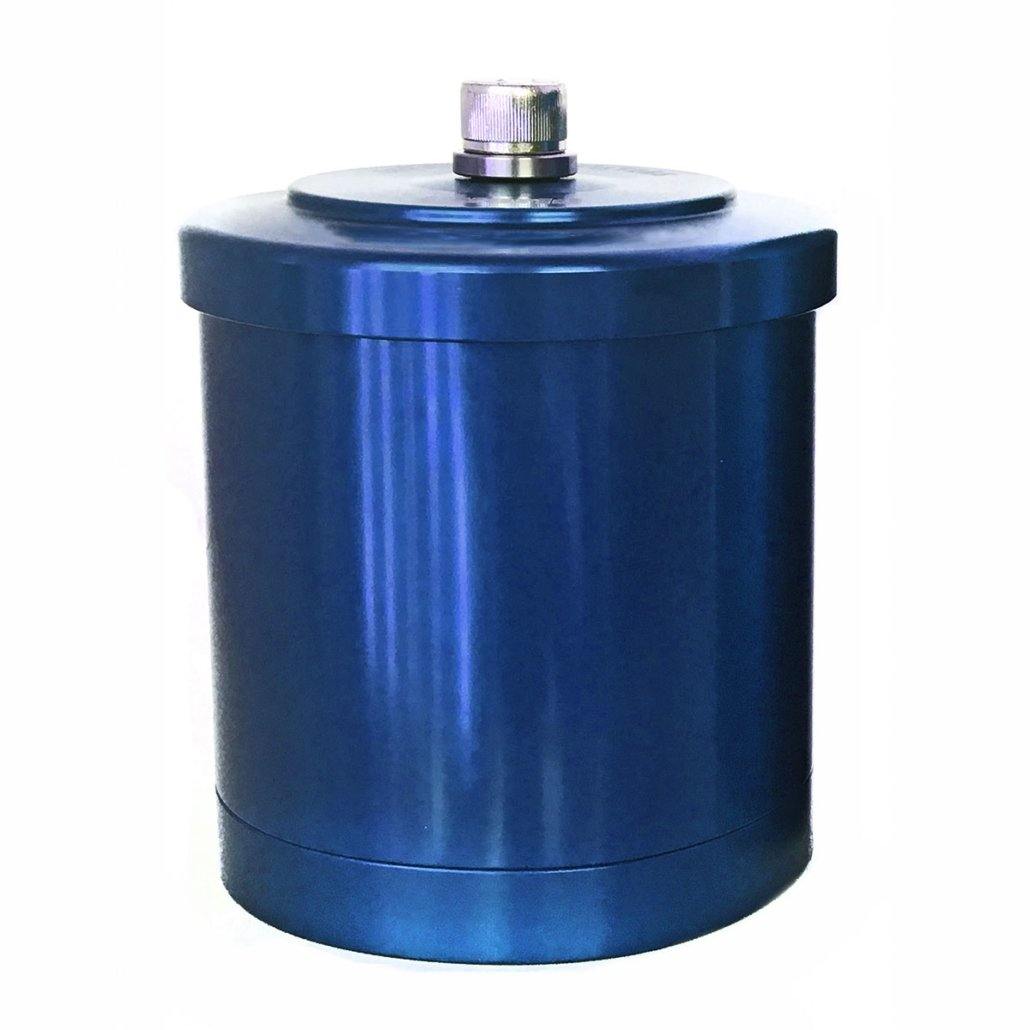

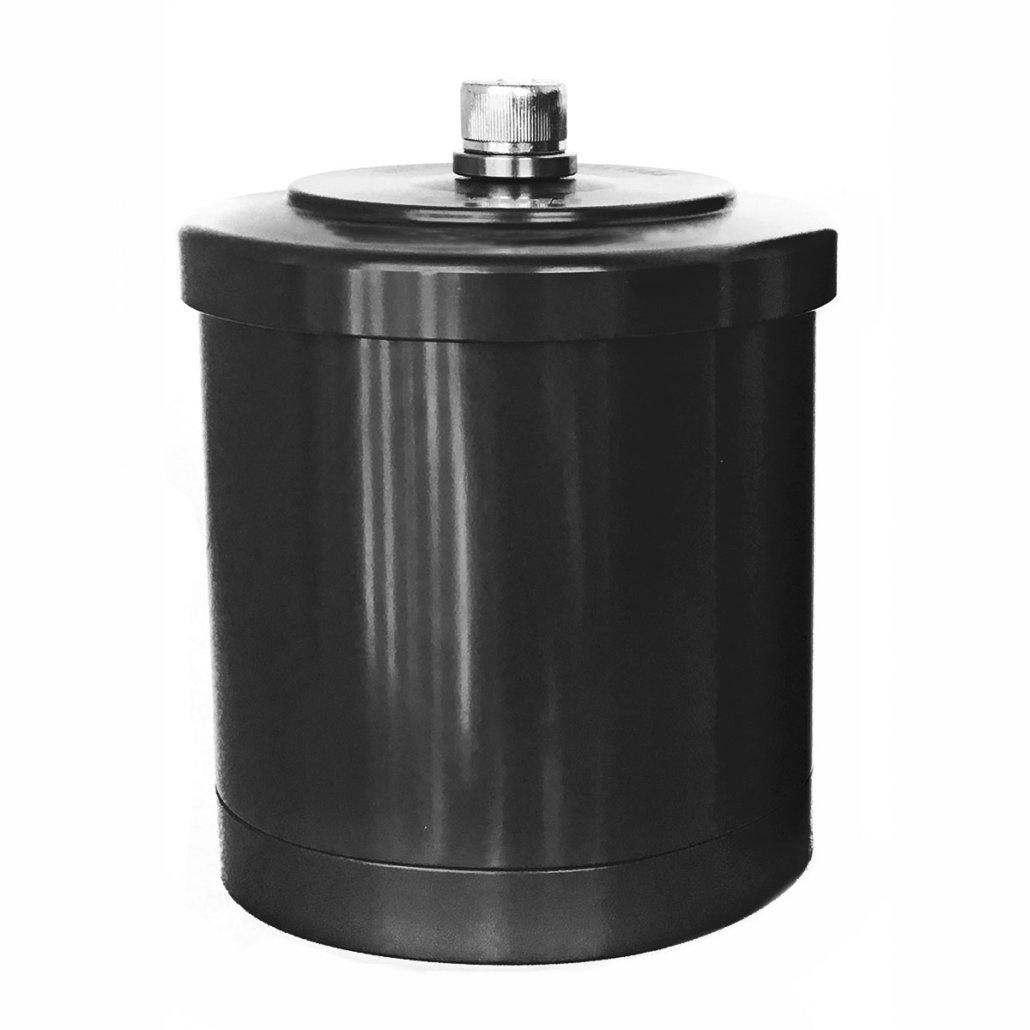

• 1 EXTREME 1 bypass oil filter housing (HX1SHBK) (HX1SHBLU) (HX1SHRED)
• 1 EXTREME 1 filter element (EX1SE) with orings (GX1/2)
• 2 In/Out fittings (AN06-04MS90)

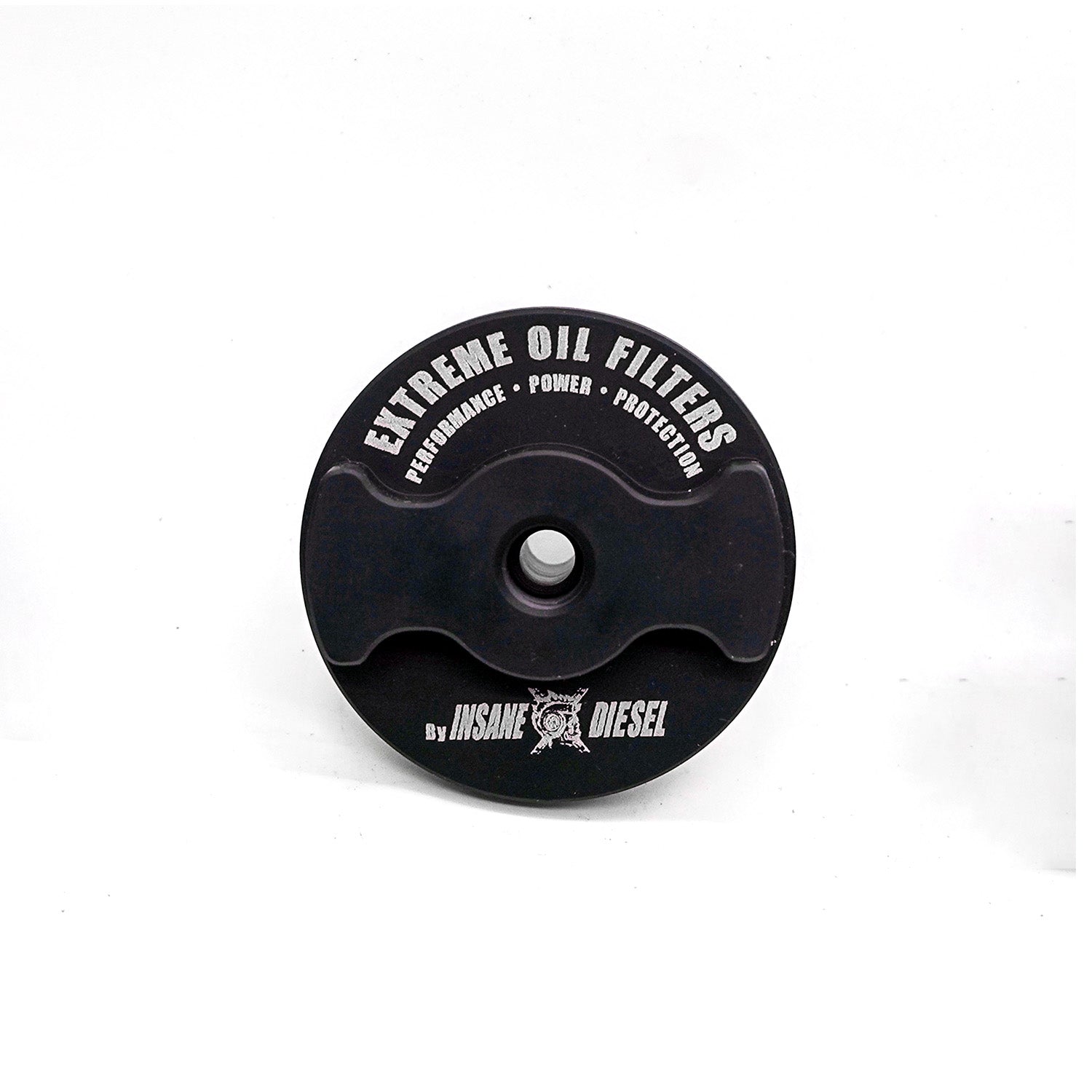

• 1 Oil fill cap (FLLCVW02) with gasket (GVW) and fitting (AN06-02MS90)
  (replaces OEM cap #11-12-8-655-331 or #111043)
• 9ft of hose you can cut to your preference (LW06BK)

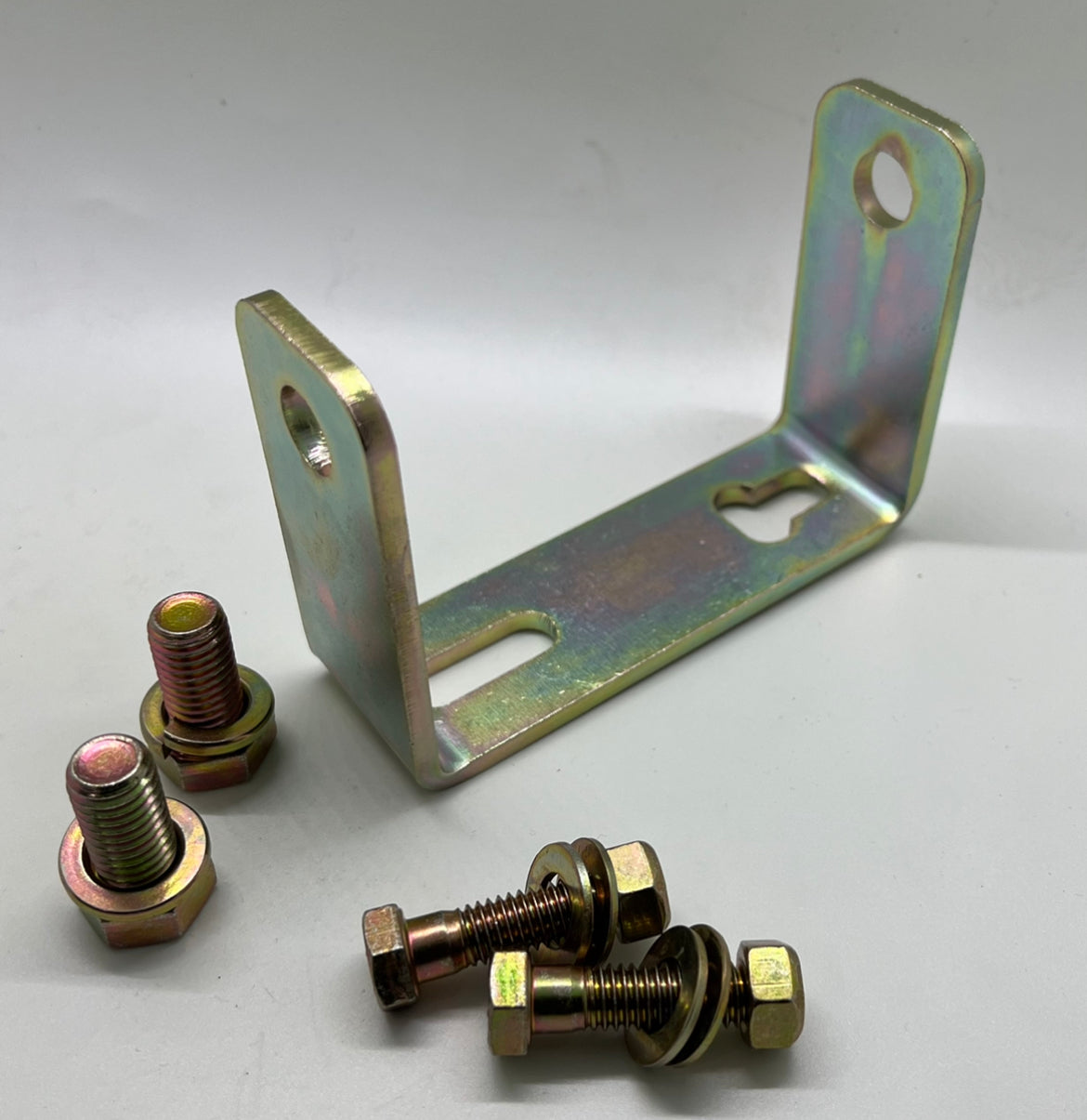

• 1 Mounting bracket with hardware (ZBrckX12)

Pressure Port Tee Fitting Option TM10

• 1 Tee fitting system (TM10) with washer (D10) and fittings (AN06-02MP90 + AN06-02MP + AN06-06FJ)

Pressure Port Tee Fitting Option TM1215B

• 1 Tee fitting system (TM1215B) with washer (C10) and fittings (AN06-02MP90 + AN06-02MP + AN06-06FJ)

Kit Compatibility Details

•  Compatible with BMWs using stock oil filler cap part# BMW 11-12-8-655-331 or part# 111043 (or similar).

• Verify your oil pressure sending unit thread size

• • TM10tee fitting is compatible with part#
  • 12-61-8-477-813
  • 12-61-8-647-488
• • TM1215B tee fitting is compatible with part#
  • 12-61-8-614-494
• If you need help verifying the compatibility of this kit please fill out this form
• This kit does not have an official mounting location yet, please refer to the "custom installations and mounting details"
• Watch the general installation video for more information
• Installation/assembly required by professional mechanic

Important: Aluminum straight thread fittings are made for no more than 60 inch pounds of torque

Benefits of Ultra-Fine Oil Filtration
