Ford 6.7L Power Stroke Bypass Oil Filter (2020–Present) Frame Mount Kit

Ford Power Stroke® 6.7L Bypass Oil Filter Frame Mount Kit

Years: 2020–Present

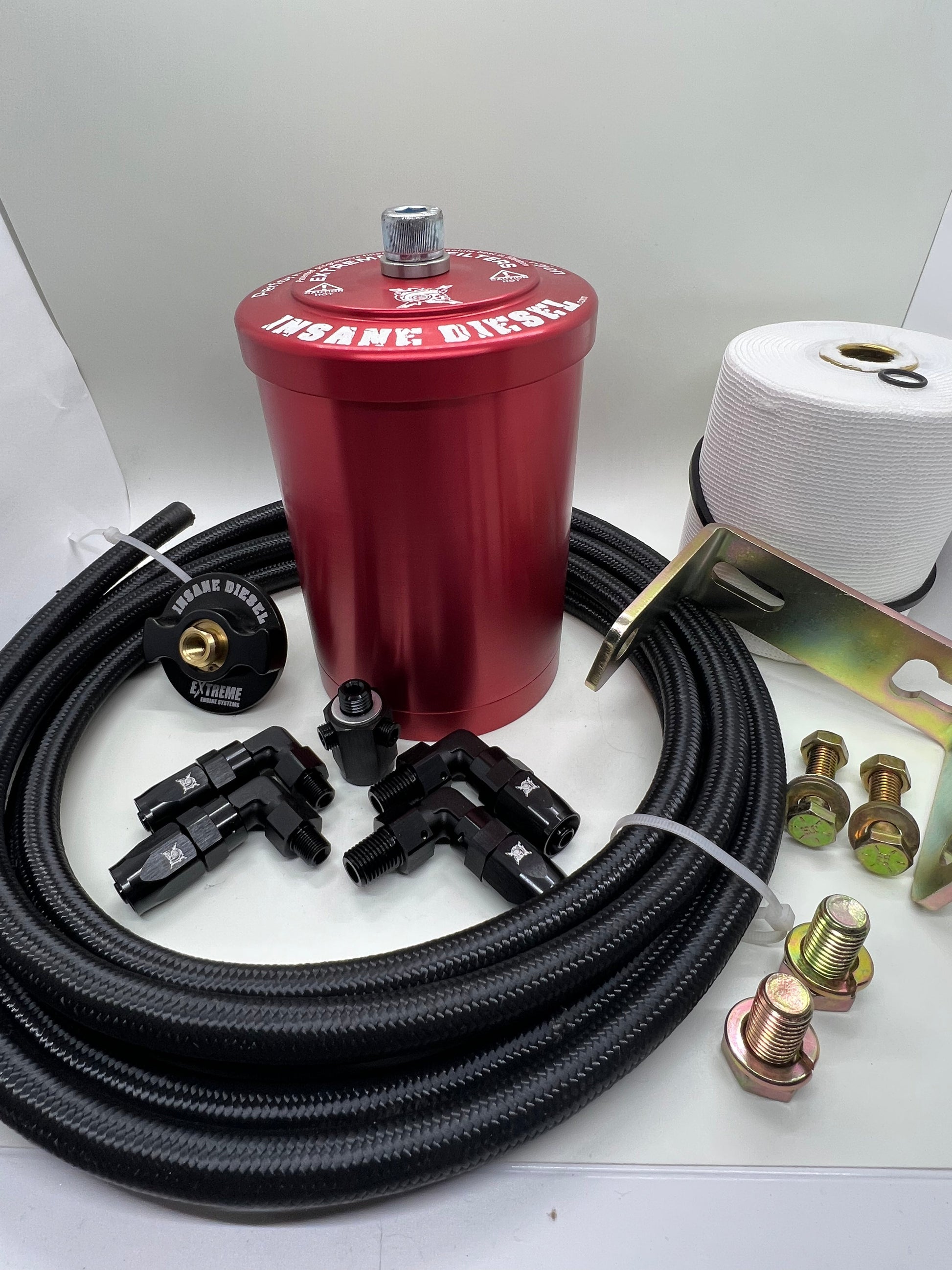

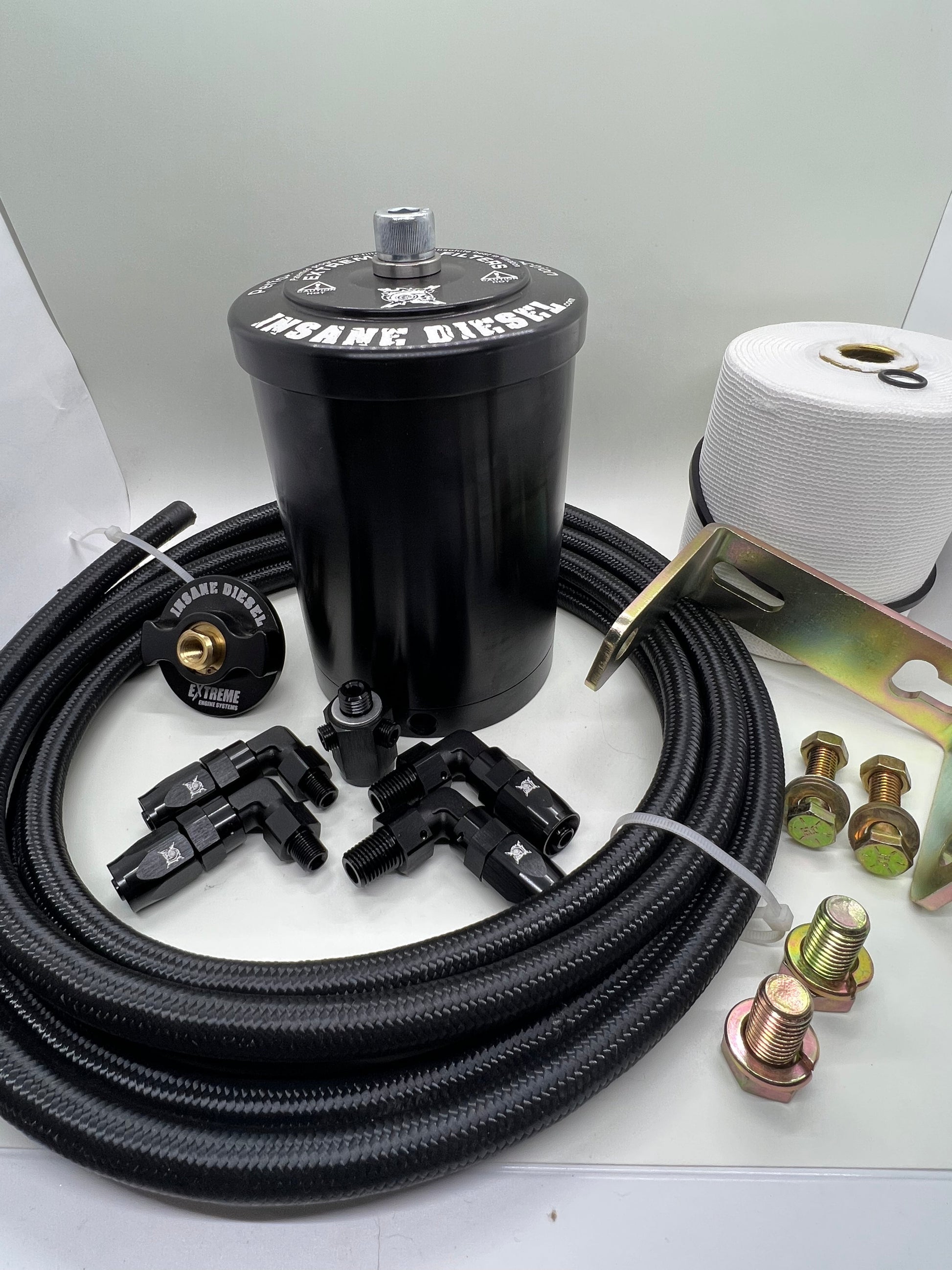

Parts Included In This Kit

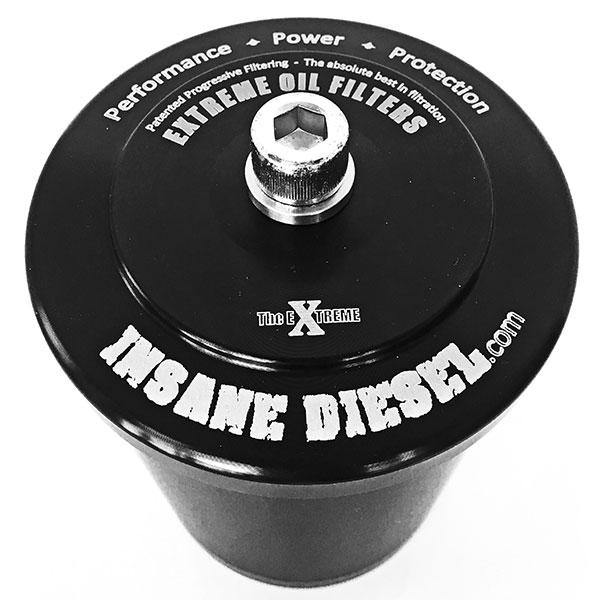

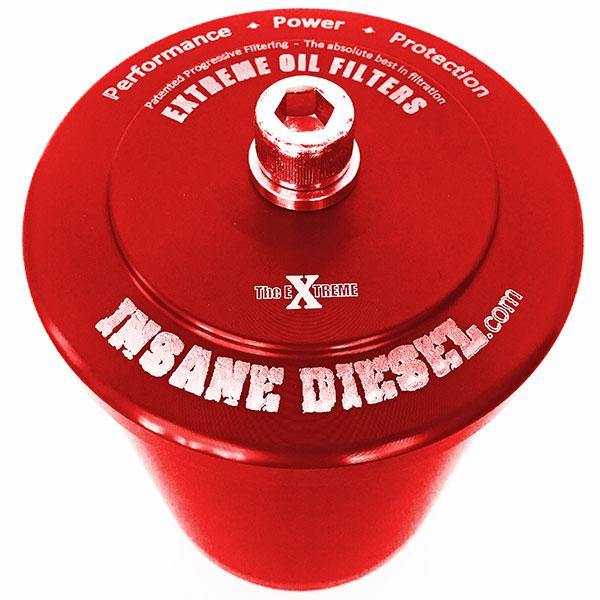

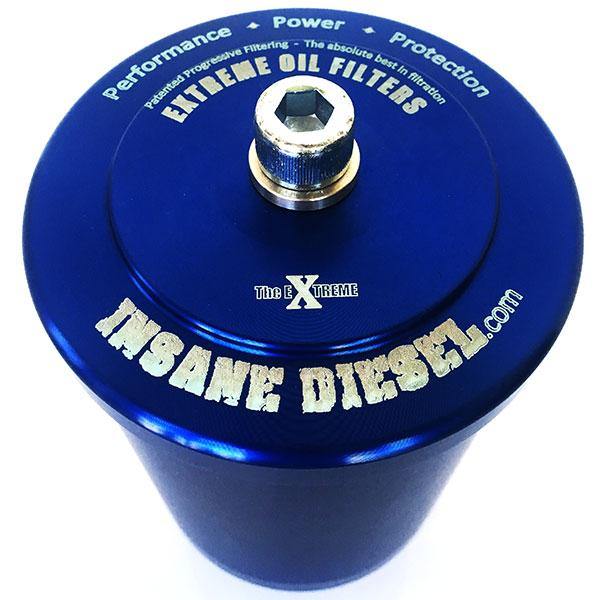

• 1 EXTREME 2 bypass oil filter housing (HX2SHBK) (HX2SHBLU) (HX2SHRED)
• 1 EXTREME 2 filter element (EX2ME) with orings (GX1/2)
• 2 In/Out fittings (AN06-04MS90)

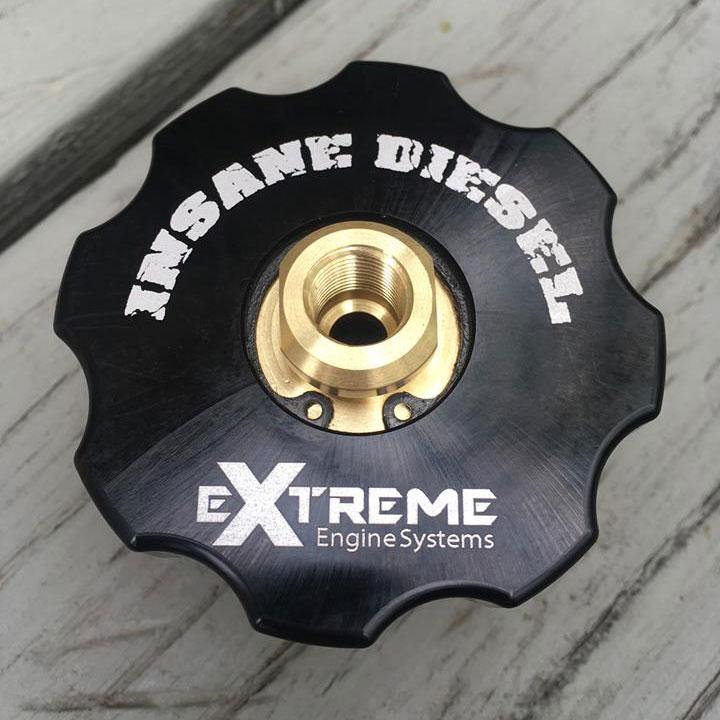

• 1 Oil filler cap (FLLC67FO) with oring (O67FO) and fitting (AN06-02MS90)
• 45" and 132" of hose (LW06BK) Notice: Recommended cut lengths are shown for reference. Hose ships as a single 15' continuous length (not pre-cut) to allow flexibility in mounting location and routing.

Pressure Port Fitting Options:

!important: please read:

The 2020 to Present Ford 6.7 Power Stroke has two different oil filter housings, each require selecting the right pressure port fitting to ensure your kit is compatible:

• Select the "Rear Facing Sensor" if:
Your oil filter housing has the oil pressure sensor cable harness pointing towards the back of the truck. See image example:

• Select the "Side Facing Sensor" if:
Your oil filter housing has an oil pressure sensor cable harness pointing towards the passenger side frame of the truck. See image example

Rear Facing Sensor Includes:

• 1 Tee fitting system (TM1215B) with washer (C12) + AN06-02MP90 + AN06-06FJ

Side Facing Sensor Includes:

• 1 Tee fitting system (TM2020RR) with washer (C12) + AN06-02MP + AN06-06FJ

Mounting Options:

Standard Frame Mount Bracket:

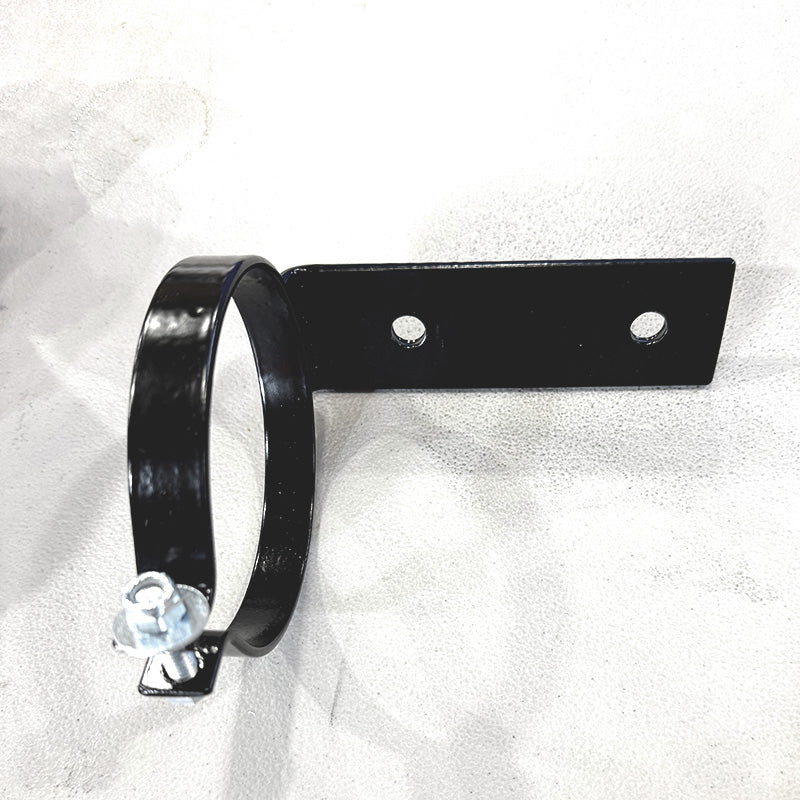

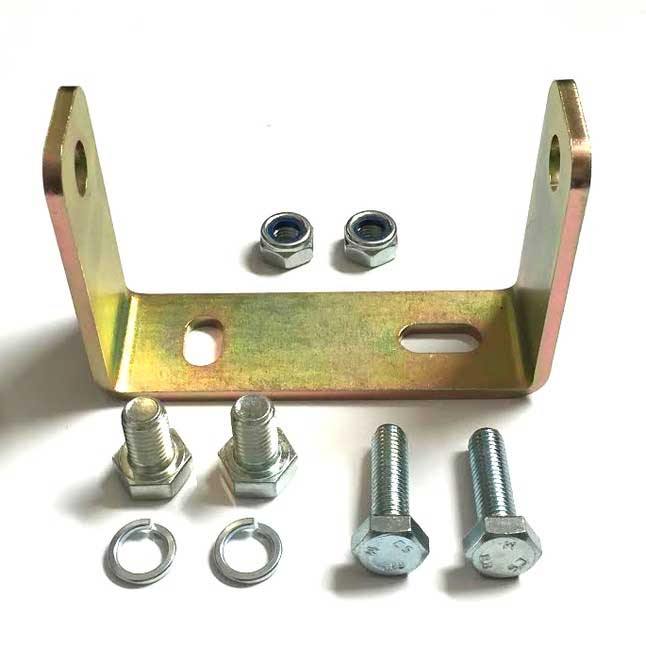

• 1 Mounting bracket with hardware (ZBRCKX12)

Auto Powered (retractable) Running Board Steps Bracket:

• 1 Auto Powered Running Board Frame Mount  (AUTO67RNNG)
  *No hardware included. Requires these two Ford parts:
  • 2 Bolts: Ford part# W718878-S439
  • 2 Bolts Stabilizers: Ford part# W719567-S439


Installation Video:

Ford 6.7 Powerstroke 2020-2024.5+ Installation Video

*Installation/Assembly must be done by certified mechanic
